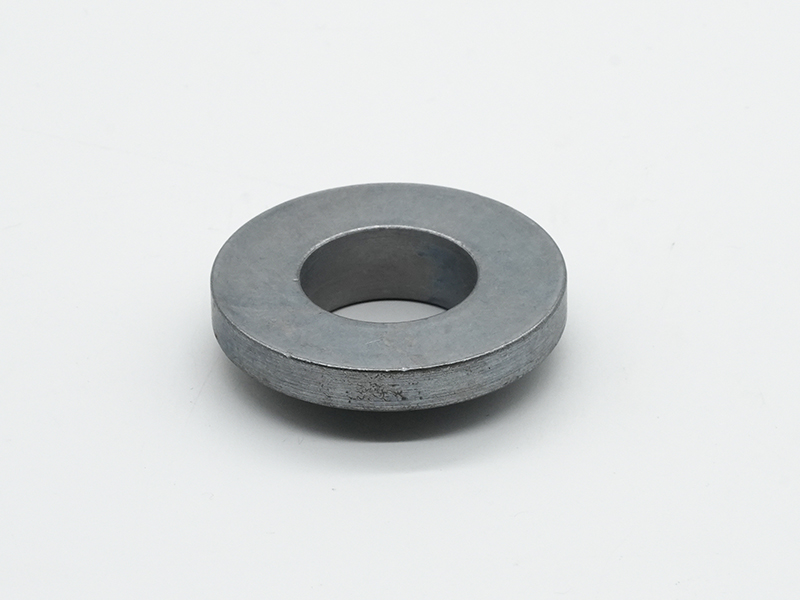

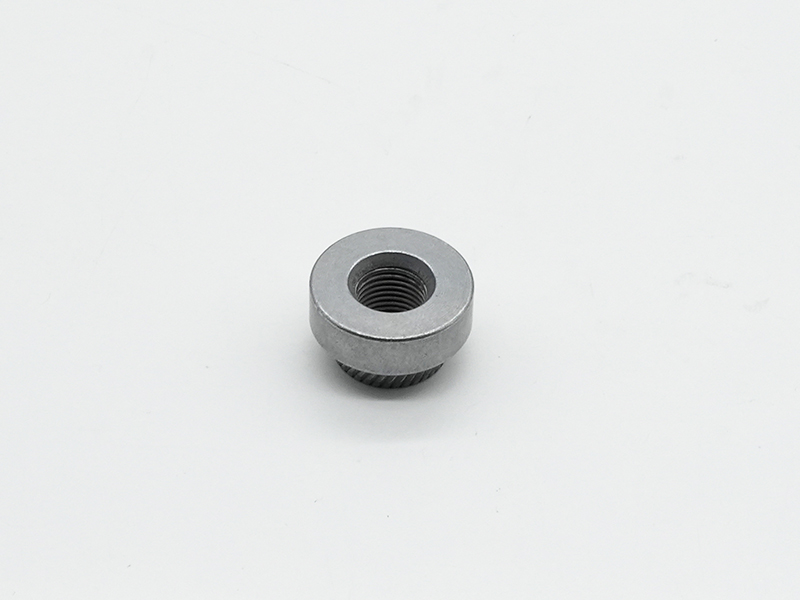

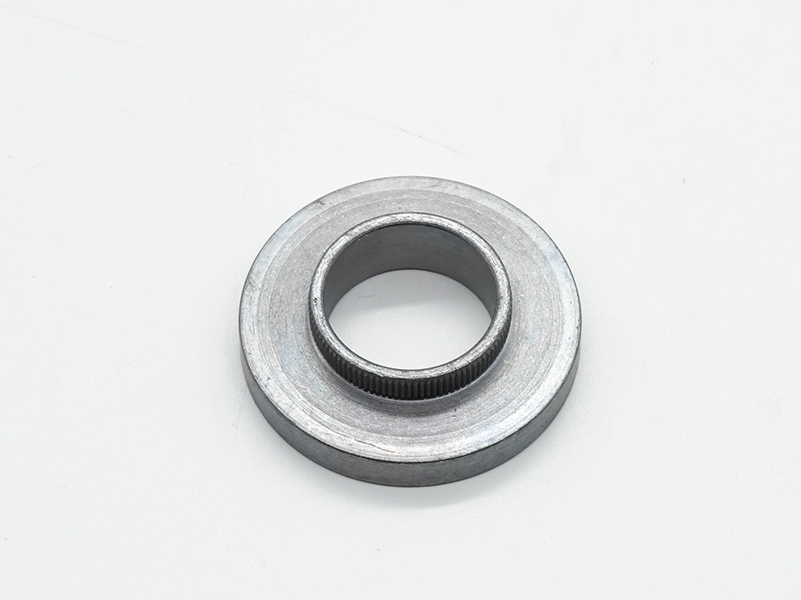

BSL® self-clinching bushings are embedded support sleeves used in the positioning holes of automotive aluminum alloy profile frames. They are used to improve the support strength of the profile positioning installation points and increase wear and corrosion resistance.
According to the shape of the embedded teeth, it is divided into straight tooth riveting bushings and helical tooth riveting bushings. The main application occasions are battery pack trays and automobile chassis.
| Product Code | D | dk | k | L | d | Installation hole diameter d0 | Mounting plate thickness h | Installation forceKN | Push forceN |
| Nominal | refer to | refer to | refer to | refer to | refer to | Min | |||
| B2031-150035 | 15 | 30 | 2 | 3.5 | 13 | 15.0-15.1 | 3.7-4.3 | 30 | 1000 |
| B2031-200180 | 20 | 27 | 3 | 18 | 16 | 20.0-20.1 | 2.7-3.3 | 30 | 3000 |
| B2032-130045 | 13 | 30 | 3 | 4.5 | 11 | 13.0-13.1 | 4.2-4.8 | 30 | 1500 |
| B2032-240045 | 24 | 36 | 3 | 4.5 | 22 | 24.0-24.1 | 4.2-4.8 | 30 | 3500 |
| B2032-240045-1 | 24 | 36 | 8 | 4.5 | 22 | 24.0-24.1 | 4.2-4.8 | 40 | 4000 |
Code description: “B2031” is a straight tooth riveted bushing, “B2032” is a helical tooth riveted bushing. “150035” means the nominal diameter D=15mm, the rod length L=3.5mm.
In addition to the above specifications, other dimensions of the riveted bushing can be customized according to customer installation requirements.
The materials and surface treatment of the riveted bushing are as follows:
| Material Category | Material grade | Material Standards | Surface treatment and protection |
| Turning Steel | 12L14 | SAE J403 | Zinc Nickel Alloy
Neutral salt spray test 720H no red rust |
